Let’s NUC this cluster out
- Install memory, SATA cable, and SSD
- Upgrade BIOS and set some annoying settings
- Install your operating system
- Set up central control
Install memory, SATA cable, and SSD
This is the least interesting part of the process, but you’ll need to do it before you can install an OS.

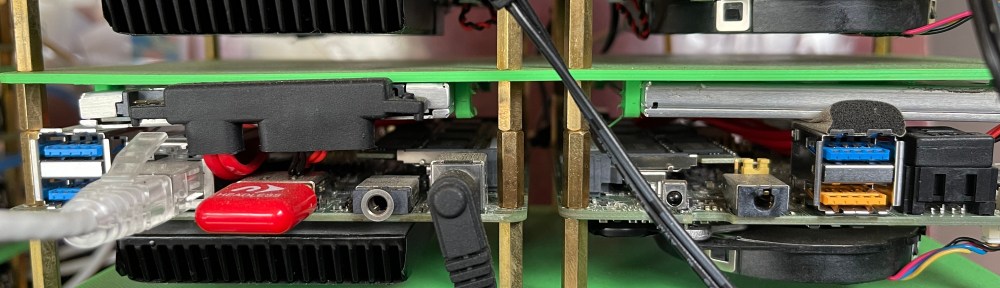

Start by loading the SODIMM of your choice onto the board. If you’re using an SSD like I am, you’ll connect the SATA cable to the black SATA connector next to the front USB stack, and the power cable to the beige connector perpendicular to the SATA connector. If you’re using a standard SD card, plug it into the SD slot to the right (as shown with the MAC address label). If you’re going with netboot (local storage? where we’re going we don’t need local storage!), just connect your network cable.
Upgrade BIOS and set some annoying settings
I created a bootable FreeDOS USB drive with Rufus, a common free software product used to create bootable USB media from ISOs (think Linux, Windows, etc). From there, we get the latest BIOS from Intel’s Download Center and place the file on the bootable drive. (Further BIOS instructions available on Intel Support.)
Update: There is a September 2022 BIOS update (0081) I just discovered in December 2022. I had originally installed BIOS update 0079 released April 20, 2020. You’ll need to search for NUC5PPYH even though the board’s model is PPYB.
Connect a monitor and keyboard, plug in the bootable drive, and apply power (or just reset the board). Use the F7 key to go into onboard flash update and load the BIOS file from the flash drive, or choose to boot from the flash drive and use the DOS-style flasher from there.
When you’ve done the upgrade and the system has rebooted, go into the BIOS with the F2 key and choose BIOS default values. Then go into the menus to enable all the USB ports (for some reason the default is to enable ports 1-3, leaving physical port 4 and header ports 5-6 disabled) as well as the SATA port if you are using that for storage. I’d also check the boot order (move net boot down in preference or disable outright if you don’t plan to use it). You can choose other settings as desired, and then press F10 to save and reboot.
Install your operating system
The easiest way to roll out the NUC side of the door would be to netboot an installation infrastructure like Cobbler. One of the first things I did when I went to work for the Mouse 10 years ago was setting up Cobbler for a deployment of RHEL 5.5.
Sure enough, Cobbler is still a thing, with very recent updates. I was able to get partway there this time and then, after several dozen runs to the garage and back to power cycle nodes, I gave up and installed from local media.
For CentOS 8, I did a manual install booting from a Rufus-created USB drive, with the SSD installed. I configured my storage and network options by hand, as well as user and root credentials. This left an “anaconda.ks” kickstart file on the installed system, which I copied to a second flash drive.
For the additional systems, I plugged both the CentOS 8 installer and the drive with the kickstart file into the NUCs and booted from USB. I ran into some strange storage issues with the drive not being blank, despite having chosen the kickstart option. Ideally, you would boot from the USB installer, it would find your kickstart config, and just roll out the software without intervention from there.
After that, if your DHCP server doesn’t assign hostnames you like, you can go in and set hostnames with hostnamectl or the like.
Set up central control
If you use a configuration management platform like Ansible, Puppet, Chef, cfengine, or the like, you’ll want to set those up at this point.
I’ve gone with the lightweight method so far, with shared SSH keys from a management host (an Intel NUC with CentOS on it, originally intended to be the cobbler server).
Use ssh-keygen to create your key files, and then ssh-copy-id can be used to push out the keys to your hosts. Then look into a more manageable option.
Where do we go from here?
As I finish this post in December 2021, a year after the original build, I’m looking at going back and making a few changes to the cluster to bring it up as a Kubernetes platform.
With the demise of CentOS as many of us know it, I’m planning to replace the installed OSes with Ubuntu LTS. I’m planning to test out some cryptocurrency cpu-based mining, and run Kubernetes platform(s) on it as well, and bring my second door up to speed (the RAM has been sitting in a box in the living room for a year now).
There’s a chance I’ll even do some lightweight Chia farming, using either bus-powered USB hard drives or some of the extra power connectors from the fused expanders for standard Seagate externals.
For those of you who have bought and built up these doors, what did you do with them? Feel free to share details and blog post links in the comments. I’ll put interesting ones into the body of this post as I see them.
Just one more thing
One much later update – if you’re looking for one of the posts that inspired this 3d printed build, it’s “What in the NUC have I done?” from Reddit a few years back. The 20mm/25mm spacers are the key detail, and I’ve found it hard to find this post again looking for mixes of m2.5 20mm 25mm 30mm nuc nuc5 nuc5ppyh nuc5ppyb rabb.it spacer standoff etc. Now when I come back to look for it again in a year or two, I’ll hopefully find it here where I left it.
The 3d printed flats are here: https://www.printables.com/model/32486-nuc-cluster-plates/files
And yes, that means I have another project in mind. I think I know where my 8GB dimms for the second set of NUCs is, and I’m ready to give up on the TK1 boards, so that means 15 NUCs in one stack. Stay tuned, and be patient. Or don’t.
